Lighting the way to safety.
In occupant safety testing, superior flicker-free and uniform Illumination is the key to achieving high quality video images.
Visol has the right solution for your application.
Our LED lighting systems are widely accepted and deployed by many of our global customers.
Our standard lighting systems are available in 2kW and 3kW configurations.
We specialize in applications such as full-scale crash barrier, dynamic sled testing, static airbag deployment, pedestrian impact testing, and dynamic component testing.
We are able to design customized lighting solutions tailored to your specific requirements.
Optimum Lighting System
for High Speed Photography
Expertise in on-site
installation & technologies
Multiple
Interface supply
Application.
Automotive
Crash Test
Automotive
Safety Test
Movie & CF
Shooting & Filming
Military & High Speed
Photography
World's first high-powered LED lighting for high-speed photography.
VISOL lighting system applies today’s technologies and a digital approach for greater economy, efficiency and future adaptability to accommodate your changing needs.
POWRAY gives you more control over the test area than you ever thought possible and will make the test area more effective, more flexible, and most importantly, better lit.
Features.
High performance &
reliability
Flexible
connectivity
Customized system
set-up available
Easy
maintenance
Specification.
| Product | POWRAY 300XX | POWRAY 200XX |
|---|---|---|
| Light Source | LED | |
| System Wattage | 3,000W | 2,000W |
| Dimming Control | 1~100%, Boost | |
| Input Voltage | 200~240[VAC], 50~60[Hz] | |
| Flicker | Free (up to 30,000fps) | |
| Power Factor | < 0.9pF | |
| Beam Angle | 30° x 40°, 40° x 60° | 35°, 40°, 45°, 50° |
| Operating Temperature Range | -20 ~ +45℃ | |
| Color Temperature | 6,000[K] | |
| Life Expectancy | 50,000 Hours | |
| Dimensions (W x D x H) | 542 x 394 x 188mm | 389 x 175 x 285mm |
| Weight | 24kg (SMPS included) | 16kg (SMPS included) |
| Fixture Primary Material | Aluminium | |
| Dimming Controller | Manual or Software (Wire/Wireless) | |
| Display | 0.96" OLED (Temp, Dimming Monitoring) | |
| Interface | RS-422 | |
Photometrical data.
POWRAY 300XX
| 1M | 2M | 3M | 4M | 5M | |
|---|---|---|---|---|---|
| Beam angle 30°x 40° | 939,000 lux | 228,000 lux | 99,400 lux | 55,300 lux | 35,200 lux |
| Beam angle 40°x 60° | 501,000 lux | 115,000 lux | 50,700 lux | 28,300 lux | 18,000 lux |
POWRAY 200XX
| 1M | 2M | 3M | 4M | 5M | |
|---|---|---|---|---|---|
| Beam angle 35° | 386,000 lux | 88,100 lux | 38,000 lux | 24,400 lux | 13,400 lux |
| Beam angle 40° | 332,000 lux | 75,600 lux | 32,600 lux | 18,100 lux | 11,500 lux |
| Beam angle 45° | 240,000 lux | 54,600 lux | 23,500 lux | 13,100 lux | 8,280 lux |
| Beam angle 50° | 208,000 lux | 47,300 lux | 20,400 lux | 11,300 lux | 7,160 lux |

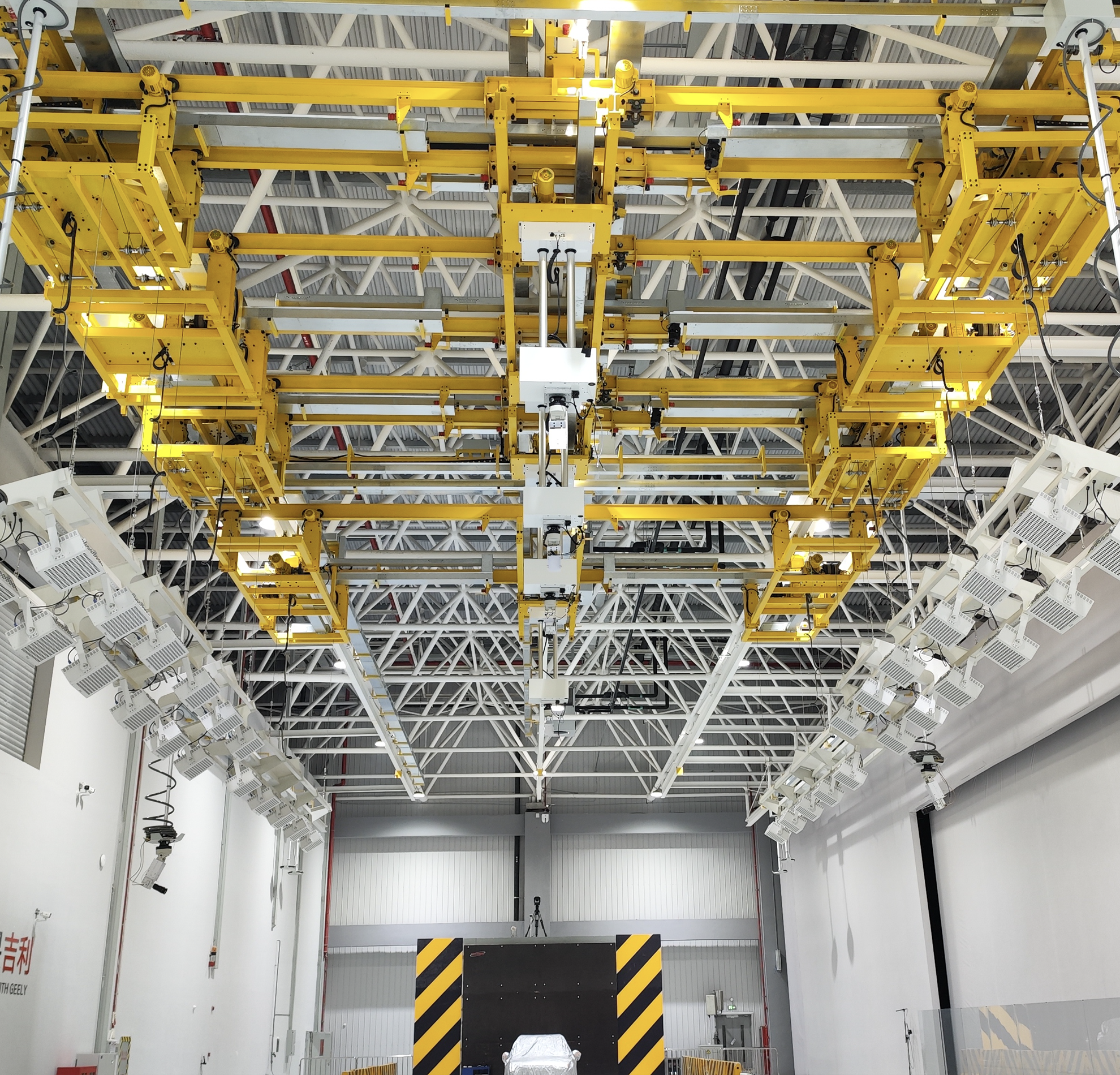

All in one positioning system.
For even greater flexibility, Visol offers highly accurate motorized positioning systems.
With our innovative design, critical positioning can be achieved in the X, Y and Z axis, including tilt and rotation.
User-specified positioning can be achieved through manual or automated motion control. Position metrics can be stored and recalled for quick and effortless setup.
POWRAY Controller / Software.
As an integrated part of your facility, our software is scalable and can be customized to meet the user’s demanding workflow requirements.
Our software is designed to accurately control the positioning system as well as the lighting fixtures.
To better accommodate your unique operating parameters and workflow, Visol can provide you with a Wired and or Wireless control interface solution.
Controller
Software
POWRAY Tripod.
- Height (Min): 55cm
- Height (Max): 155cm
- Weight: 20kg
- Load Weight: 20kg
- Diameter: 100cm
- Height adjustment: Hydraulic
